Binary classification problem#
import torch
import torch.nn as nn
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt
from arcana.model import DPINeuron
from torchvision import datasets
from torchvision.transforms import ToTensor, Compose, Resize
np.random.seed(0)
torch.manual_seed(0)
# Get CPU or GPU device for training
device = "cuda" if torch.cuda.is_available() else "cpu"
device = torch.device(device)
size = 16
train_data = datasets.MNIST(
root="./data",
train=True,
download=True,
transform=Compose([Resize(size), ToTensor()]),
)
test_data = datasets.MNIST(
root="./data",
train=False,
download=True,
transform=Compose([Resize(size), ToTensor()]),
)
device = "cuda" if torch.cuda.is_available() else "cpu"
import os
scaled_pixels0 = np.load(os.path.join("./data/train", "MNIST0.npy"))
scaled_pixels1 = np.load(os.path.join("./data/train", "MNIST1.npy"))

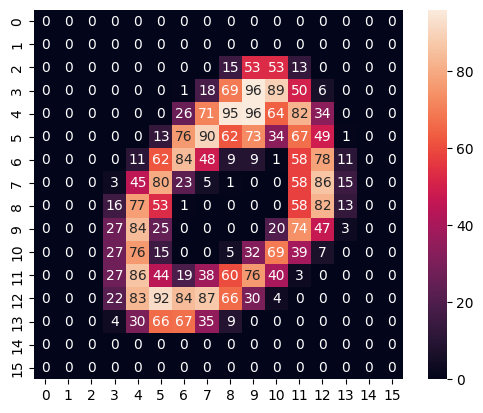

plt.imshow(scaled_pixels0[0].squeeze())
sns.heatmap(scaled_pixels0[0].squeeze(), annot=True)
print(sum(sum(scaled_pixels0[0])))
s = 0
for i in range(len(scaled_pixels0)):
s += sum(sum((scaled_pixels0[i])))
s = int(s / len(scaled_pixels0))
print(s)
plt.show()

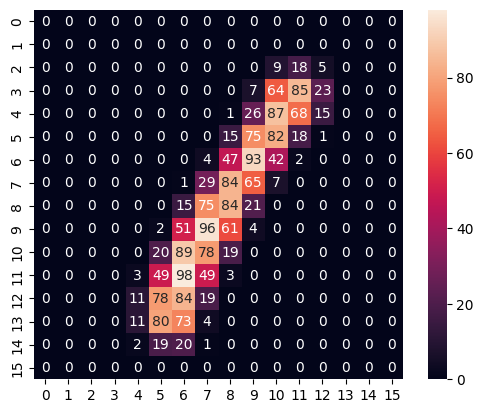

plt.imshow(scaled_pixels1[0].squeeze())
sns.heatmap(scaled_pixels1[0].squeeze(), annot=True)
print(sum(sum(scaled_pixels1[0])))
s = 0
for i in range(len(scaled_pixels1)):
s += sum(sum((scaled_pixels1[i])))
s = int(s / len(scaled_pixels1))
print(s)
plt.show()
4005
4453
2192
1956
T = 100
dt = 1e-3
tensor_pixels0 = torch.tensor(scaled_pixels0).repeat(T, 1, 1, 1).transpose(0, 1)
tensor_pixels0 = torch.bernoulli(tensor_pixels0 * dt)
t, idx = torch.where(tensor_pixels0[0].view(T, -1))

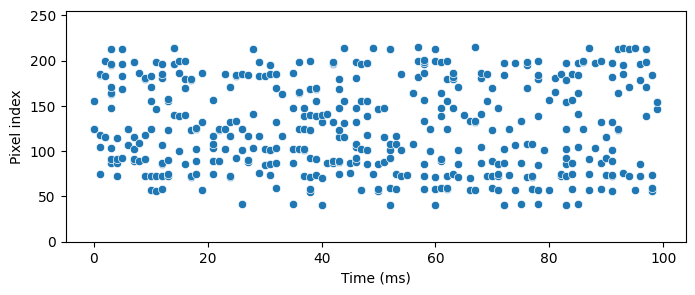

fig, ax = plt.subplots(1, 1, figsize=(8, 3))
# plt.plot(t, idx, '|')
sns.scatterplot(x=t, y=idx, ax=ax)
ax.set(xlabel="Time (ms)", ylabel="Pixel index", ylim=[0, 255])
plt.show()
tensor_pixels1 = torch.tensor(scaled_pixels1).repeat(T, 1, 1, 1).transpose(0, 1)
tensor_pixels1 = torch.bernoulli(tensor_pixels1 * dt)
t, idx = torch.where(tensor_pixels1[0].view(T, -1))

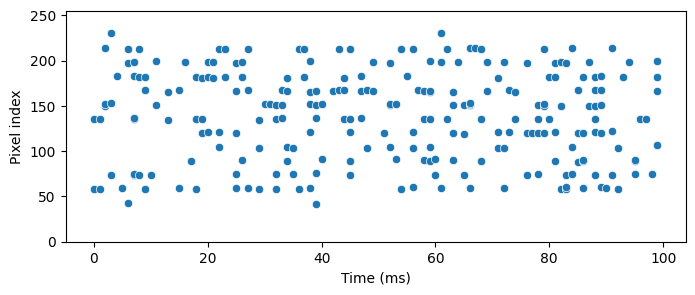

fig, ax = plt.subplots(1, 1, figsize=(8, 3))
# plt.plot(t, idx, '|')
sns.scatterplot(x=t, y=idx, ax=ax)
ax.set(xlabel="Time (ms)", ylabel="Pixel index", ylim=[0, 255])
plt.show()
from torch.utils.data import TensorDataset
tensor_pixels = torch.concat([tensor_pixels0, tensor_pixels1], dim=0)
tensor_labels = torch.concat(
[torch.zeros(tensor_pixels0.shape[0]), torch.ones(tensor_pixels1.shape[0])], dim=0
)
dataset = TensorDataset(tensor_pixels, tensor_labels)
scaled_pixels0 = np.load(os.path.join("./data/test", "MNIST0.npy"))
scaled_pixels1 = np.load(os.path.join("./data/test", "MNIST1.npy"))
T = 100
dt = 1e-3
tensor_pixels0 = torch.tensor(scaled_pixels0).repeat(T, 1, 1, 1).transpose(0, 1)
tensor_pixels0 = torch.bernoulli(tensor_pixels0 * dt)
t, idx = torch.where(tensor_pixels0[0].view(T, -1))
tensor_pixels1 = torch.tensor(scaled_pixels1).repeat(T, 1, 1, 1).transpose(0, 1)
tensor_pixels1 = torch.bernoulli(tensor_pixels1 * dt)
t, idx = torch.where(tensor_pixels1[0].view(T, -1))
tensor_pixels = torch.concat([tensor_pixels0, tensor_pixels1], dim=0)
tensor_labels = torch.concat(
[torch.zeros(tensor_pixels0.shape[0]), torch.ones(tensor_pixels1.shape[0])], dim=0
)
dataset_test = TensorDataset(tensor_pixels, tensor_labels)
min_val, max_val, diff = 0, 6, 1
plt.imshow(scaled_pixels0[0].squeeze())
sns.heatmap(scaled_pixels0[0].squeeze(), annot=True)
print(sum(sum(scaled_pixels0[0])))
s = 0
for i in range(len(scaled_pixels0)):
s += sum(sum((scaled_pixels0[i])))
s = int(s / len(scaled_pixels0))
print(s)
plt.show()
4005
4541
import os
from tqdm import tqdm
def train(neuron, optimizer, epochs, dataset, logFile=None, plot=False):
neuron.train()
trainLoss = []
trainAcc = []
for epoch in range(epochs):
accEpoch = []
lossEpoch = []
pbar = tqdm(enumerate(dataset), total=len(dataset))
for idx, (X, label) in pbar:
outAcum = 0.0
IampaAcum = 0.0
IgababAcum = 0.0
state = None
for t in range(X.shape[1]):
out, state = neuron(X[:, t].view(-1, size**2), state)
(_, Iampa, _, _, Igaba, _) = state
IampaAcum = IampaAcum + Iampa
IgababAcum = IgababAcum + Igaba
outAcum += out
IampaAcum = torch.nn.functional.softmax(IampaAcum, dim=1)
IgababAcum = torch.nn.functional.softmax(IgababAcum, dim=1)
errLoss = torch.nn.functional.cross_entropy(
IampaAcum - IgababAcum, label.long()
)
# newWeights = torch.cat([neuron.W_ampa, neuron.W_gabab], dim=1)
# regL1Loss = torch.sum(torch.abs((torch.round(newWeights) + newWeights).detach() - newWeights))
# regL2Loss = torch.sum(((torch.round(newWeights) + newWeights).detach() - newWeights)**2)
# regL1Loss = torch.round(torch.sum(torch.abs(newWeights)))
# regL2Loss = torch.round(torch.sum((newWeights)**2))
# regL1Loss = torch.relu(torch.sum(torch.abs(torch.round(newWeights))) - 50)
# loss = errLoss + 1/outAcum.sum(dim=-1).mean() + 0.01*regL1Loss #+ 10*regL1Loss + 10*regL2Loss#+ 0*regL1Loss + 0.0*regL2Loss
loss = errLoss # + 0.001*regL2Loss#+ 10*regL1Loss + 10*regL2Loss#+ 0*regL1Loss + 0.0*regL2Loss
optimizer.zero_grad()
loss.backward()
optimizer.step()
with torch.no_grad():
acc = (torch.argmax(outAcum, dim=1) == label).cpu().float().mean()
accEpoch.append(acc)
lossEpoch.append(loss.item())
neuron.add_mismatch("Iw_ampa", 0.1)
neuron.add_mismatch("Iw_gabab", 0.1)
if logFile is not None:
np.save(
os.path.join(
logFile, "weights", f"ampa{epoch*len(dataset)+idx+1}"
),
neuron.W_ampa.data.numpy(),
)
np.save(
os.path.join(
logFile, "weights", f"gabab{epoch*len(dataset)+idx+1}"
),
neuron.W_gabab.data.numpy(),
)
np.save(
os.path.join(
logFile, "gradients", f"ampa{epoch*len(dataset)+idx+1}"
),
neuron.W_ampa.grad.numpy(),
)
np.save(
os.path.join(
logFile, "gradients", f"gabab{epoch*len(dataset)+idx+1}"
),
neuron.W_gabab.grad.numpy(),
)
pbar.set_postfix_str(
f"Mean loss: {np.mean(lossEpoch):.3f}, ACC: {np.mean(accEpoch):.3f}"
)
with torch.no_grad():
# newWeights = torch.nn.functional.softmax(torch.cat([neuron.W_ampa, neuron.W_gabab], dim=1), dim=1)*64
newWeights = torch.cat([neuron.W_ampa, neuron.W_gabab], dim=1)
newWeights = (
40 * newWeights / newWeights.sum(dim=1).repeat(newWeights.shape[1], 1).T
)
neuron.W_ampa.data = newWeights[:, : newWeights.shape[1] // 2]
neuron.W_gabab.data = newWeights[:, newWeights.shape[1] // 2 :]
trainLoss.append(np.mean(lossEpoch))
trainAcc.append(np.mean(accEpoch))
if plot:
fig, ax = plt.subplots()
ax1 = ax
ax2 = plt.twinx(ax)
ax1.plot(trainLoss)
ax2.plot(trainAcc)
plt.show()
@torch.no_grad()
def test(neuron, dataset):
neuron.eval()
totalAcc = []
neuron.add_mismatch(0.1)
for X, label in tqdm(dataset):
state = None
totalImem = []
totalIampa = []
totalIgabab = []
totalVmem = []
outAcum = 0.0
for t in range(X.shape[1]):
out, state = neuron(X[:, t].view(-1, size**2), state)
outAcum = outAcum + out
(Imem, Iampa, _, _, Igabab, _) = state
totalImem.append(Imem.numpy())
totalIampa.append(Iampa.numpy())
totalIgabab.append(Igabab.numpy())
totalVmem.append(neuron.I2V(Imem).numpy())
acc = (torch.argmax(outAcum, dim=1) == label).cpu().float().mean().item()
totalAcc.append(acc)
return (
totalImem,
np.stack(totalVmem),
np.stack(totalIampa),
np.stack(totalIgabab),
np.array(totalAcc),
label,
)
neuron = DPINeuron(
size**2,
2,
Itau_mem=1.8e-12,
Igain_mem=75e-12,
Ith=1.2,
Idc=240e-12,
refP=0.0,
Ipfb_th=225e-12,
Ipfb_norm=1.0e9,
Itau_ampa=4e-12,
Igain_ampa=10e-12,
Iw_ampa=420e-12,
Itau_gabab=4e-12,
Igain_gabab=10e-12,
Iw_gabab=420e-12,
dt=1e-3,
train_Igain_mem=False,
train_Itau_mem=False,
train_ampa=True,
train_gabab=True,
)
torch.nn.init.uniform_(neuron.W_ampa, a=0.0, b=1)
torch.nn.init.uniform_(neuron.W_gabab, a=0.0, b=1)
optimizer = torch.optim.SGD(neuron.parameters(), lr=1e-3)
optimizer.register_step_post_hook(neuron.UpdateParams)
# train(neuron, optimizer, 2, train_dataloader)
dl = torch.utils.data.DataLoader(dataset, batch_size=128, shuffle=True)
dl_test = torch.utils.data.DataLoader(dataset_test, batch_size=128, shuffle=True)
X, label = next(iter(dl))
outAcum = 0.0
IampaAcum = 0.0
IgababAcum = 0.0
state = None
neuron.train()
totalIampa = []
totalIgabab = []
for t in range(X.shape[1]):
out, state = neuron(X[:, t].view(-1, size**2), state)
(_, Iampa, _, _, Igabab, _) = state
totalIampa.append(Iampa.detach().numpy())
totalIgabab.append(Igabab.detach().numpy())
IampaAcum = IampaAcum + Iampa
IgababAcum = IgababAcum + Igabab
outAcum += out
IampaAcum.retain_grad()
IgababAcum.retain_grad()
totalIampa = np.stack(totalIampa)
totalIgabab = np.stack(totalIgabab)
IampaAcumSoftmax = torch.nn.functional.softmax(IampaAcum, dim=1)
IgababAcumSoftmax = torch.nn.functional.softmax(IgababAcum, dim=1)
errLoss = torch.nn.functional.cross_entropy(IampaAcum - IgababAcum, label.long())
# newWeights = torch.cat([neuron.W_ampa, neuron.W_gabab], dim=1)
# regL1Loss = torch.sum(torch.abs((torch.round(newWeights) + newWeights).detach() - newWeights))
# regL2Loss = torch.sum(((torch.round(newWeights) + newWeights).detach() - newWeights)**2)
# regL1Loss = torch.sum(torch.abs(newWeights))
# regL2Loss = torch.sum((newWeights)**2)
loss = errLoss # + 0.01*regL1Loss #+ 50*regL2Loss
optimizer.zero_grad()
loss.backward()
# optimizer.step()

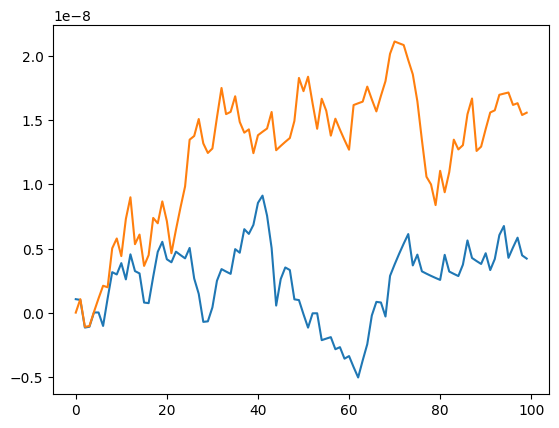

plt.plot(totalIampa[:, 0] - totalIgabab[:, 0])
[<matplotlib.lines.Line2D at 0x7f28329a8340>,
<matplotlib.lines.Line2D at 0x7f28329a8df0>]

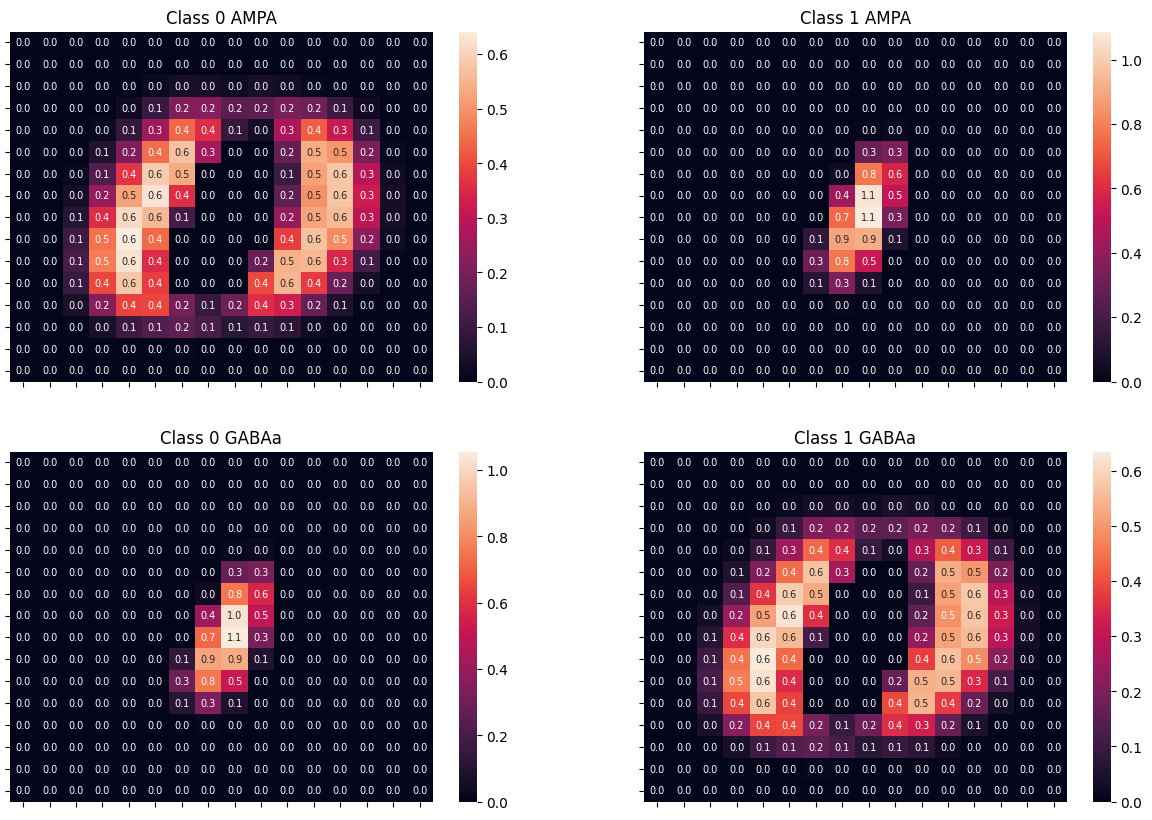

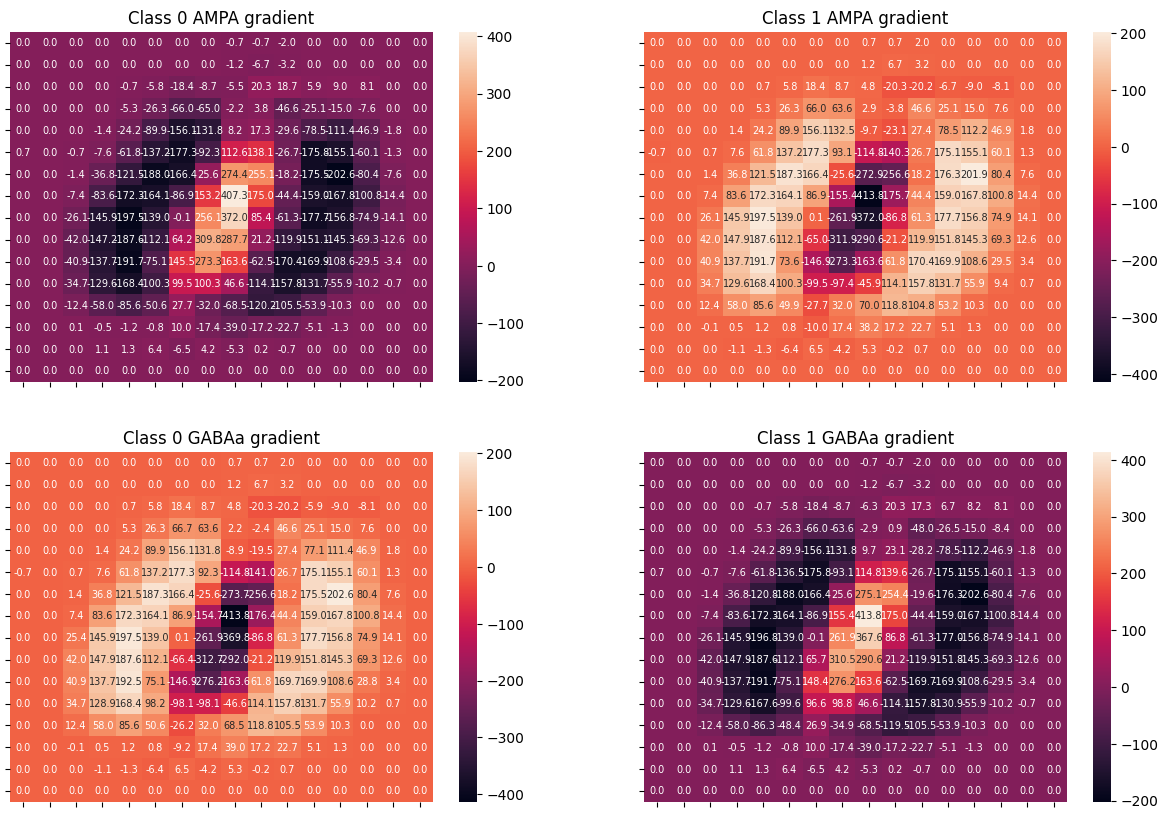

with torch.no_grad():
fig, axs = plt.subplots(2, 2, figsize=(15, 10))
htm1 = sns.heatmap(
neuron.W_ampa.grad[0, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[0, 0],
)
htm2 = sns.heatmap(
neuron.W_ampa.grad[1, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[0, 1],
)
htm1.set(xticklabels=[])
htm1.set(yticklabels=[])
htm1.set(title="Class 0 AMPA gradient")
htm2.set(xticklabels=[])
htm2.set(yticklabels=[])
htm2.set(title="Class 1 AMPA gradient")
htm1 = sns.heatmap(
neuron.W_gabab.grad[0, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[1, 0],
)
htm2 = sns.heatmap(
neuron.W_gabab.grad[1, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[1, 1],
)
htm1.set(xticklabels=[])
htm1.set(yticklabels=[])
htm1.set(title="Class 0 GABAa gradient")
htm2.set(xticklabels=[])
htm2.set(yticklabels=[])
htm2.set(title="Class 1 GABAa gradient")
plt.show()

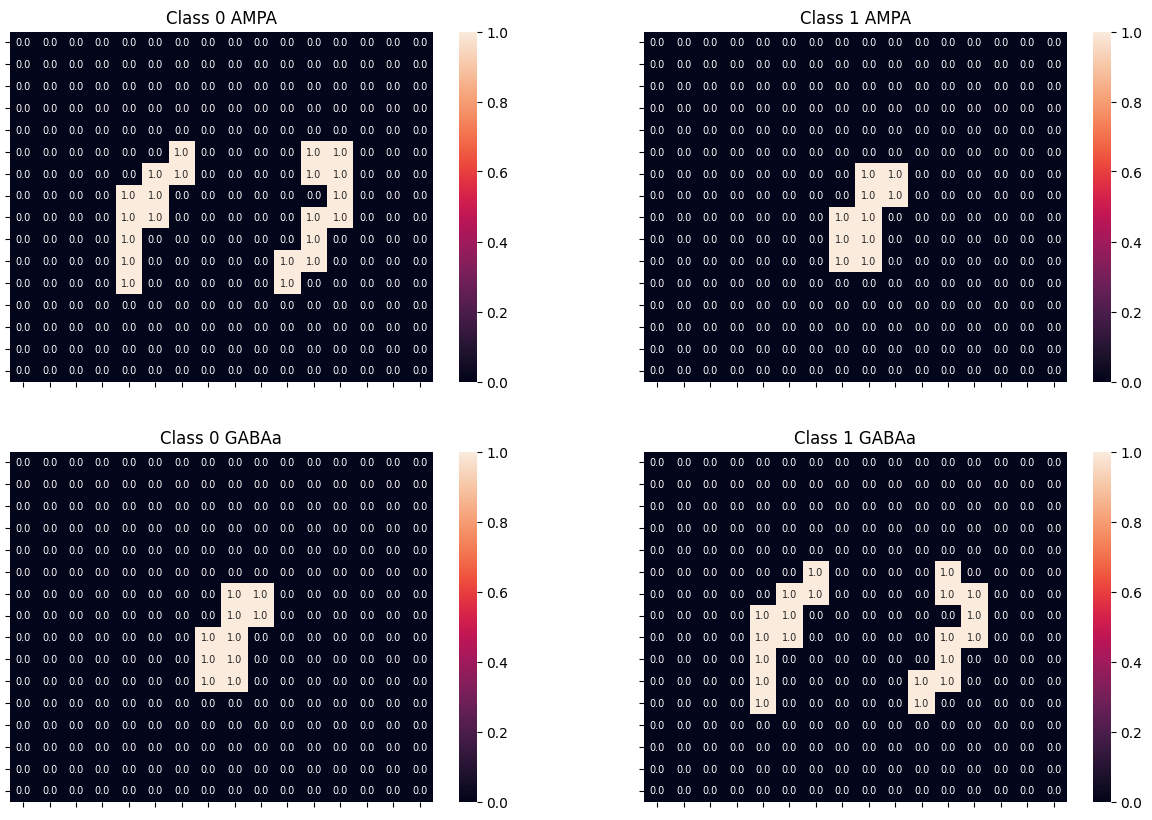

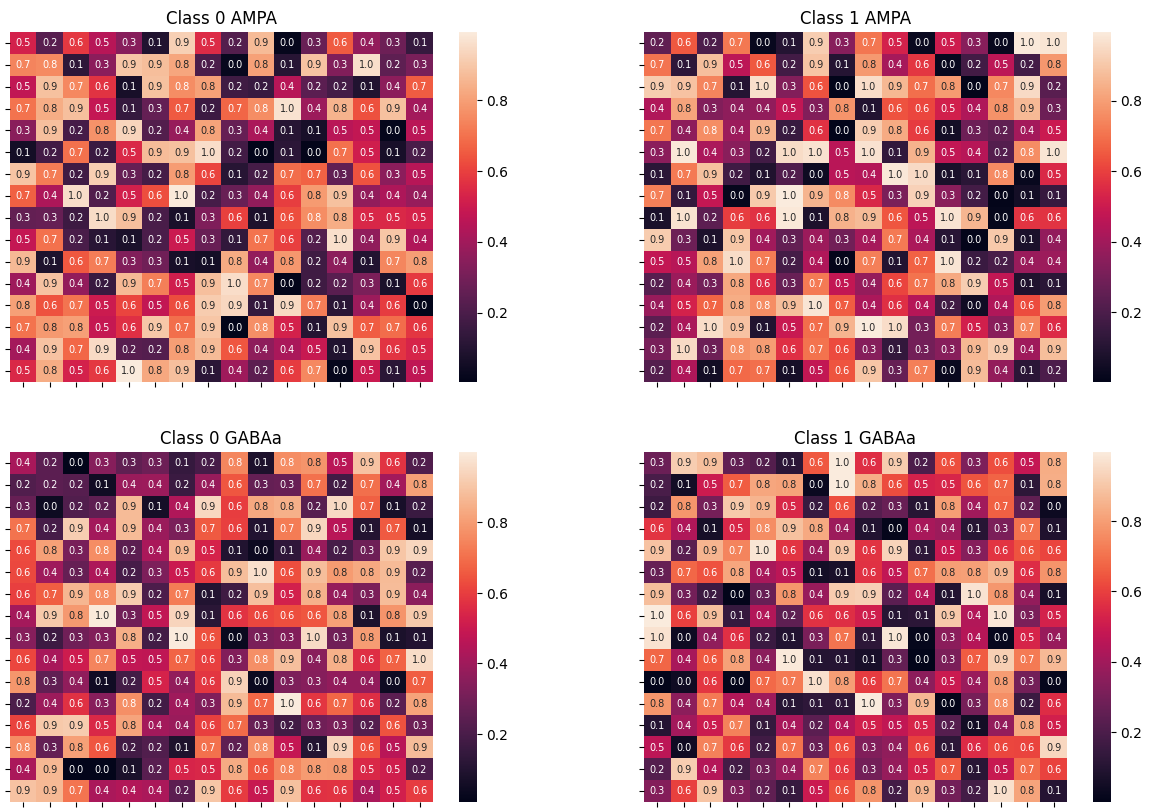

with torch.no_grad():
fig, axs = plt.subplots(2, 2, figsize=(15, 10))
htm1 = sns.heatmap(
neuron.W_ampa[0, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[0, 0],
)
htm2 = sns.heatmap(
neuron.W_ampa[1, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[0, 1],
)
htm1.set(xticklabels=[])
htm1.set(yticklabels=[])
htm1.set(title="Class 0 AMPA")
htm2.set(xticklabels=[])
htm2.set(yticklabels=[])
htm2.set(title="Class 1 AMPA")
htm1 = sns.heatmap(
neuron.W_gabab[0, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[1, 0],
)
htm2 = sns.heatmap(
neuron.W_gabab[1, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[1, 1],
)
htm1.set(xticklabels=[])
htm1.set(yticklabels=[])
htm1.set(title="Class 0 GABAa")
htm2.set(xticklabels=[])
htm2.set(yticklabels=[])
htm2.set(title="Class 1 GABAa")
plt.show()
train(neuron, optimizer, 1, dl, logFile="./log")
100%|██████████| 99/99 [00:15<00:00, 6.34it/s, Mean loss: 0.693, ACC: 0.964]
newWeights = torch.cat([neuron.W_ampa, neuron.W_gabab], dim=1)
torch.round(newWeights).sum(dim=1, keepdim=True)
tensor([[31.],
[30.]], grad_fn=<SumBackward1>)
with torch.no_grad():
# np.save(os.path.join('/home/ferqui/Work/dynapse/Experiments/mnist/weights', f'ampa{198}'), neuron.W_ampa.data.numpy())
# np.save(os.path.join('/home/ferqui/Work/dynapse/Experiments/mnist/weights', f'gabab{198}'), neuron.W_gabab.data.numpy())
fig, axs = plt.subplots(2, 2, figsize=(15, 10))
htm1 = sns.heatmap(
neuron.W_ampa[0, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[0, 0],
)
htm2 = sns.heatmap(
neuron.W_ampa[1, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[0, 1],
)
htm1.set(xticklabels=[])
htm1.set(yticklabels=[])
htm1.set(title="Class 0 AMPA")
htm2.set(xticklabels=[])
htm2.set(yticklabels=[])
htm2.set(title="Class 1 AMPA")
htm1 = sns.heatmap(
neuron.W_gabab[0, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[1, 0],
)
htm2 = sns.heatmap(
neuron.W_gabab[1, :].reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[1, 1],
)
htm1.set(xticklabels=[])
htm1.set(yticklabels=[])
htm1.set(title="Class 0 GABAa")
htm2.set(xticklabels=[])
htm2.set(yticklabels=[])
htm2.set(title="Class 1 GABAa")
# plt.savefig('/home/ferqui/Work/dynapse/231010/mnist/figures/InitialWeights.pdf', bbox_inches='tight', transparent=True, dpi=300)
plt.show()
with torch.no_grad():
# np.save(os.path.join('/home/ferqui/Work/dynapse/Experiments/mnist/weights', f'ampa{198}'), neuron.W_ampa.data.numpy())
# np.save(os.path.join('/home/ferqui/Work/dynapse/Experiments/mnist/weights', f'gabab{198}'), neuron.W_gabab.data.numpy())
fig, axs = plt.subplots(2, 2, figsize=(15, 10))
htm1 = sns.heatmap(
np.round(neuron.W_ampa[0, :]).reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[0, 0],
)
htm2 = sns.heatmap(
np.round(neuron.W_ampa[1, :]).reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[0, 1],
)
htm1.set(xticklabels=[])
htm1.set(yticklabels=[])
htm1.set(title="Class 0 AMPA")
htm2.set(xticklabels=[])
htm2.set(yticklabels=[])
htm2.set(title="Class 1 AMPA")
htm1 = sns.heatmap(
np.round(neuron.W_gabab[0, :]).reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[1, 0],
)
htm2 = sns.heatmap(
np.round(neuron.W_gabab[1, :]).reshape(size, size),
annot=True,
fmt=".1f",
annot_kws={"size": 7},
ax=axs[1, 1],
)
htm1.set(xticklabels=[])
htm1.set(yticklabels=[])
htm1.set(title="Class 0 GABAa")
htm2.set(xticklabels=[])
htm2.set(yticklabels=[])
htm2.set(title="Class 1 GABAa")
# plt.savefig('/home/ferqui/Work/dynapse/231010/mnist/figures/InitialWeights.pdf', bbox_inches='tight', transparent=True, dpi=300)
plt.show()
